Inspection equipment

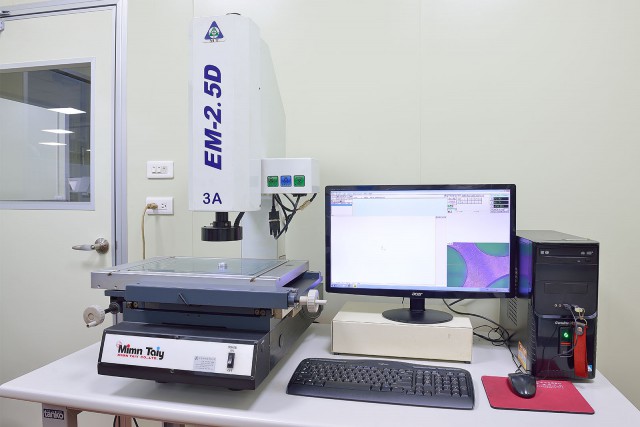

2.5D Projector can measure point, line, circle, arc and oval, rectangular which achieve rapid detection and improve the accuracy of product dimensions.

  • Measuring Range (X, Y, Z) : 300*200*150 mm
  • Resolution: 0.5 µm
  • Image magnification: 0.7X ~ 4.5X

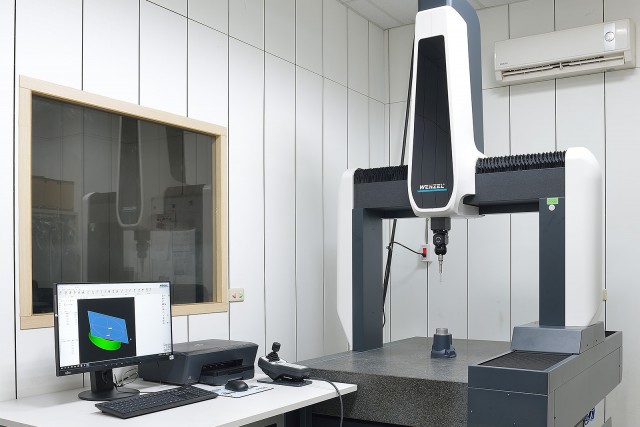

Fast inspection to increase product capability and reduce cost.

  • Measuring Range : 1200 x 500
  • Resolution : 0.05µm

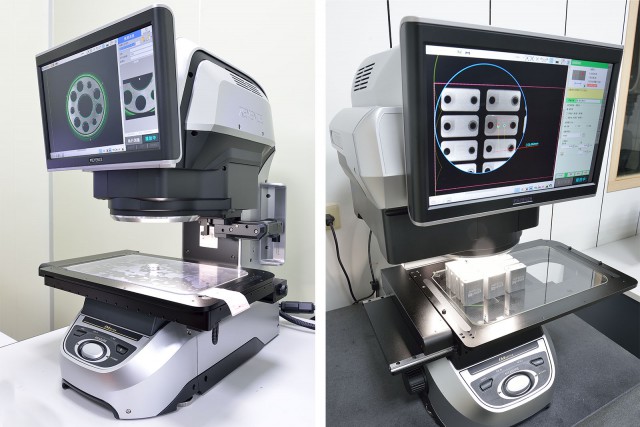

IM-8000 can perform a range of new measurements, including symmetry, plane measurements, flatness, cylindricity, coaxiality, and run-out while delivering data visualizations, including roundness graphs.

  • Repeatability : 0.5 µm
  • Measurement accuracy : 2 µm

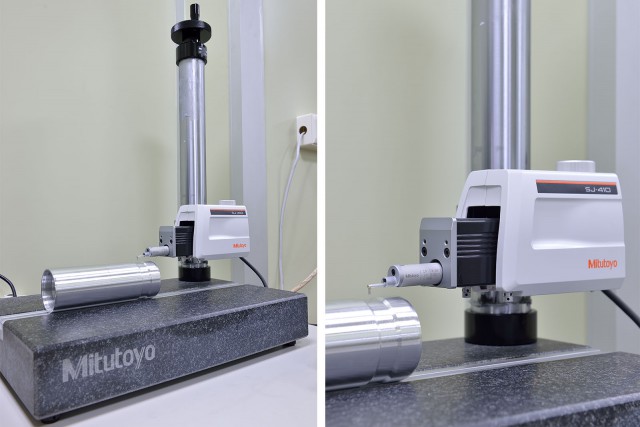

Mitutoyo SJ-410

Can be equipped with accessories such as height gauge and measuring stands to perform various posture adjustment and positioning measurements of complex workpiece.

Detector Measuring range / Resolution

  • 800µm / 0.01µm
  • 80µm / 0.001µm
  • 8µm / 0.0001µm

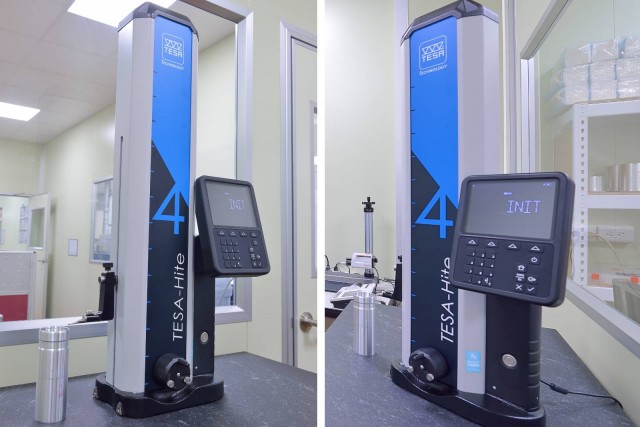

Its optical reading system offers users greater accuracy than its magnetic system counterpart (TESA-HITE MAGNA) without having to compromise on its long-term reliability.

  • Resolution : 0.1 µm
